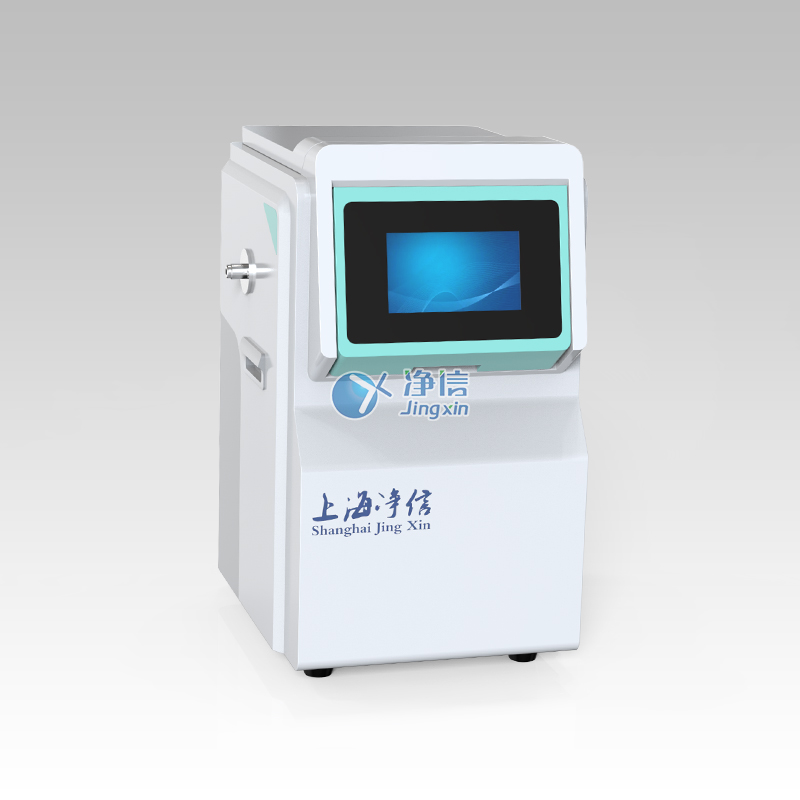

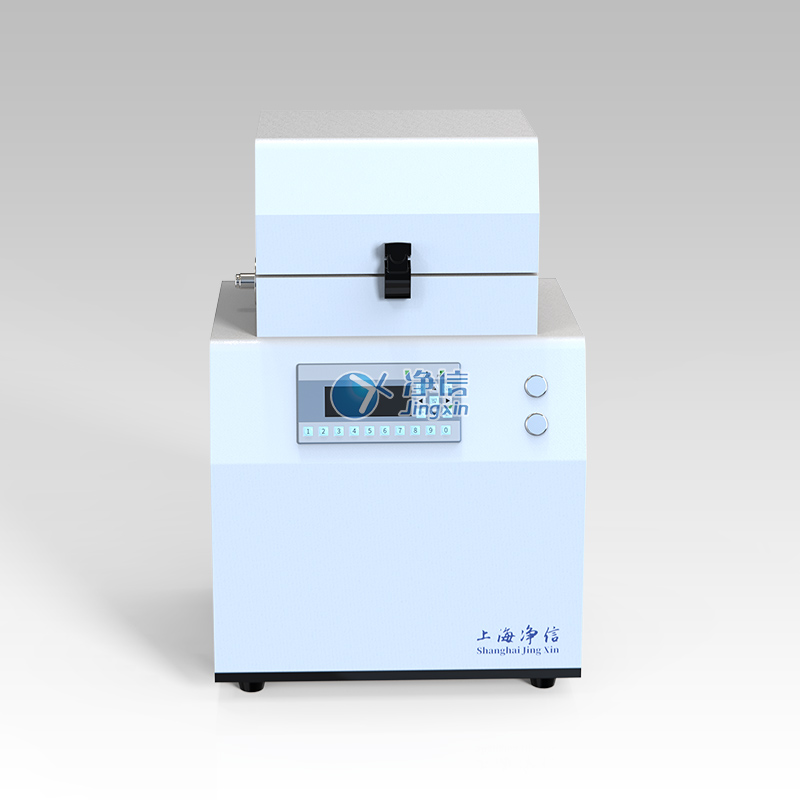

Cryogenic Grinder (manual liquid nitrogen freezing) JXFSTPRP-II-02 (patented product, counterfeiting must be investigated! 201620363493X)
Application range of liquid nitrogen grinder:
The product is sensitive to heat sensitive substances, Chinese and Western medicine, animals and plants, rubber, plastic, (root, stem, leaf, flower, fruit, seed, brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph node, muscle , bones, fungi, bacteria, food, medicines, coal, oil shale, wax products, PE, PS, textiles, resins), etc. and materials that are tough at room temperature and cannot be crushed.
The liquid nitrogen grinder is to first freeze the above-mentioned substances below the embrittlement point, and then grind them to the required fineness in the grinder, and the original ingredients will not be destroyed. In addition, flammable and explosive substances at room temperature can also be crushed at low temperature, and the effect is more significant.
Main technical features:
A. High data accuracy and reproducibility
1. During the grinding process, the sample is always at an ultra-low temperature facilitated by liquid nitrogen.
2. Theory The sample is cooled to -100 within 1 minute. C, can reach -196 in 4 minutes and 30 seconds. C
3. The sample is in a completely closed state during the crushing process, and the sample is completely kept in the grinding tube to ensure the control of dangerous and important samples.
4. The sample bottles are independently sealed, and it is very convenient to clean after each break, avoiding cross-contamination between samples and external contamination
B. Versatility, humanized design
1. LCD display, can set parameters such as grinding time and grinding operation frequency (optional)
2. Movable control panel (optional)
3. Can store 10 programs (optional)
4. Sample tubes such as 1.5ML 2ML 5ML 10ML 25ML 50ML can be installed for sample grinding
c. Durability
1. There is only one moving part - the collider, which greatly reduces the mechanical stress and prolongs the service life of the equipment
2. Strong technical support: Shanghai Jingxin company has more than 2000 users, professional sample pretreatment equipment production
Experimental case:

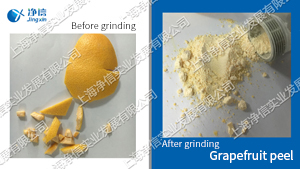

1. Test Method for Grinding Corn Seed with Tissuelyser? Plant Tissue Grinder | 2. Test method for grinding citrus peel tissue with Tissuelyser? plant tissue grinder |
|
|
Steps:
1. Manual operation
(1) Manually immerse the adapter and grinding jar into the liquid nitrogen sample, and quickly cool down to -196 degrees. Prevent sample degradation or enable changes in sample physical properties
(2) Add the liquid nitrogen tank to the liquid nitrogen tank in the cavity, and reduce the temperature in the cavity to a low temperature through the effect of liquid nitrogen, thereby ensuring that the entire grinding process is in a low temperature state
(3) Put the adapter and grinding jar on the grinder. Cover the safety cover and lock the safety lock to operate.

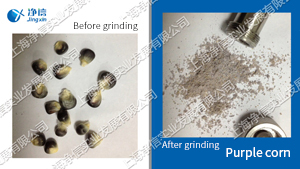

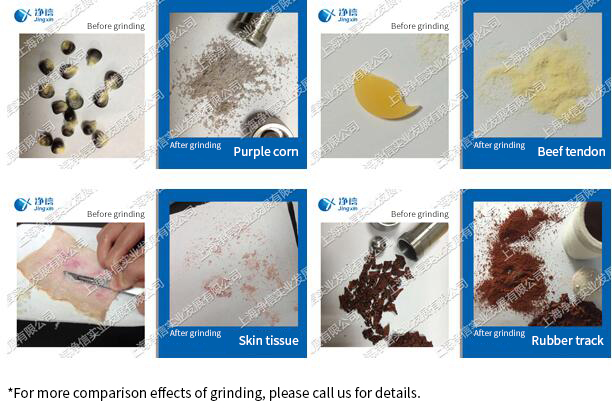

Grinding comparison:
Main Specifications:
The main parameters | Parameter range |
Processing system: | Has five systems, sample grinding system, low temperature conveying system, low temperature control system, circuit control system, heat preservation system |
Application areas: | Biology, Food, Agriculture, Pharmaceuticals, Chemistry/Synthetic Materials, Engineering/Electronics, Building Materials, Glass/Ceramics |
Automatic filling of liquid nitrogen: | The flow of liquid nitrogen can be controlled in the whole process, and can be filled at any time during the operation. |
Operation method: | Manual |
Connection device: | With liquid nitrogen connection, automatic transfer from storage system to sample grinding system |
Low temperature or liquid nitrogen grinding: | Yes, it can be connected to a liquid nitrogen tank (Type II) or an air cooler (Type I) |
Shell Design: | The shell is all made of hard steel, to avoid having a plastic cover, which affects safety. |
Sample Features: | hard, medium hard, soft, brittle, elastic, fibrous |
Crushing principle: | Low temperature freezing force, mechanical impact force, physical friction force |
Temperature range: | -196℃-100℃ |
Feed size: | ≤ 8 mm |
Discharge size | 0~ 5 μm |
Standard machine processing sample size: | 50ml*2(Can be customized) |
Grinding jar size: | 1.5ml/2ml/5 ml /10ML/ 25 ml / 35 ml / 50 ml.(Can be customized) |
Grinding jar placement: | It can be done once without the need to repeat the placement twice, extending the working time and affecting the sample temperature. |
Grinding working speed: | Grinding speed: 1-70HZ adjustable (30-2100 rpm/100-7000RPM) |
Shockproof principle: | JXFSTPRP-1 anti-vibration principle, as well as a special three-dimensional vibration mode of up and down and left and right shaking, the sample moves in a three-dimensional figure-8 shape in space, which can be suitable for cracking various animal and plant tissues and microorganisms, and extract DNA, RNA and protein conveniently and quickly. |
Typical liquid nitrogen grinder: | 15S |
Grinding jar material: | Stainless steel, PTFE, Teflon, carbide steel, etc. |
Grinding Ball Material: | Alloy steel, chrome steel, zirconia, tungsten carbide, quartz sand |
Accelerate: | Reach maximum speed in 2 seconds |
Decelerate: | Reach lower speed in 2 seconds |
Standard： | ISO /CE |
