Product Description:

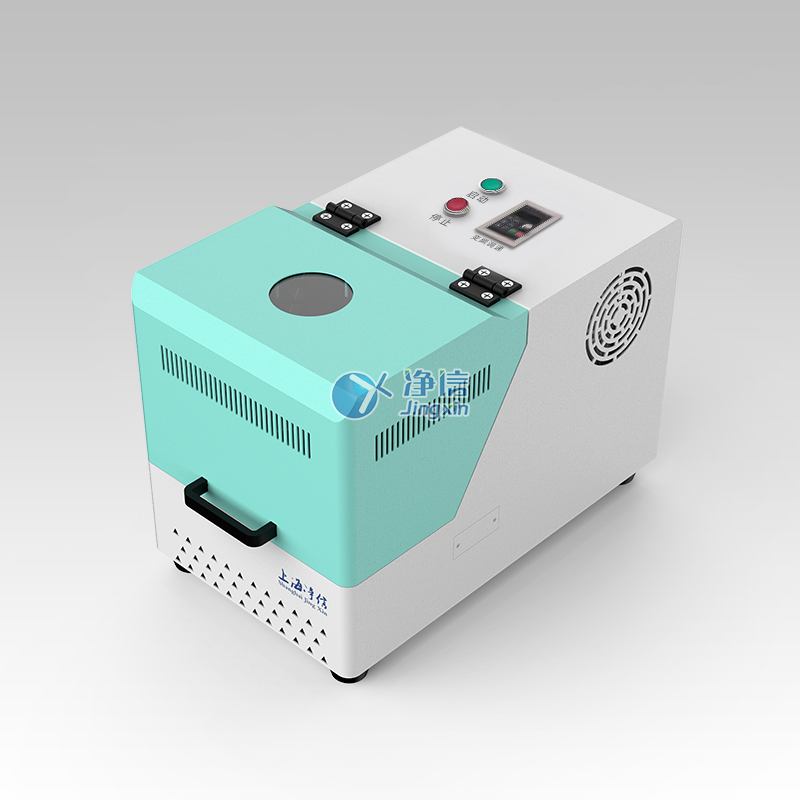

The JX type soil grinder is a kind of special high-performance mechanical equipment for the preparation of small ultra-fine powders developed by our company. A large number of user applications show that the soil grinder has the characteristics of small size, light weight, easy operation, and no pollution, which is very suitable for the use of various types of soil grinding in the laboratory. The soil machine uses an advanced planetary structure to increase the grinding efficiency more than ten times; the four tanks are separately loaded, so that different materials do not affect each other. Gear transmission ensures the consistency and repeatability of the experiment; fast rotation and energy Large, high efficiency, fine particle size; four samples of different sizes and materials can be obtained at the same time in one experiment;
Advantages of soil grinder:
1. Inlet size: ≤10 mm, other materials ≤3mm, discharge particle size: <100nm, dry or wet grinding can be performed;
2. Pressure can be set (via scale), digital timing;
3, can provide 7 kinds of different materials of grinding kits, stainless steel, agate, etc.
4 Real-time power display, crushing time setting, digital format, continuous operation from 1 to 99 minutes;
5 The grinding room is designed to be sealed and dust-proof, with an observation window;
6. High-power drive with electronic monitoring device.
Technical parameter:
Main parameters | Parameter range |
Brand Name: | JXFSTPRP Jingxin |
Product name: | Soil grinder |
Model: | JX-2G |
Operation mode:` | LCD touch display |
Sample size (different materials): | ≤10mm, other materials ≤3mm |
Sample size: | ＜100nm |
Processing capacity: | 50ml/can |
Ball mill tank capacity: | 4x100ml |
Main disc speed: | 35-435r/min |
Rotation speed of ball mill tank: | 70-8700r/min |
Transmission ratio (planetary disc/ball mill tank): | 1：2 |
Forward and reverse operation: | yes |
Continuous running time setting: | 1-9999 min |
Pause time setting: | 1-999 min |
Dangerous emergency stop: | yes |
Grinding room lighting description: | LED blue light |
Touch screen: | adaptation |
Carrier volume: | 50ml -100ml |
Material of ball milling media: | stainless steel, agate, zirconia, corundum, nylon, polytetrafluoroethylene optional |
Media diameter: | 3/5/10/15/20mm |
Media quality: | 100-400g |
Grinding method: | dry grinding / wet grinding |
Low temperature cooling treatment: | Yes (additional) |
Inert gas protection treatment: | Yes |
Net weight: | 29kg |
Size (length, width and height): | 530*300*340mm |
Standard: | CE |
Tank ball ratio:
Tank ball ratio: |
|
Grinding jar | 100ml |
Effective volume | 1-50ml |
Ball size | Number of balls |
5mm | 300 |
10mm | 30 |
15mm | 15 |
20mm | 8 |
