Product Description:

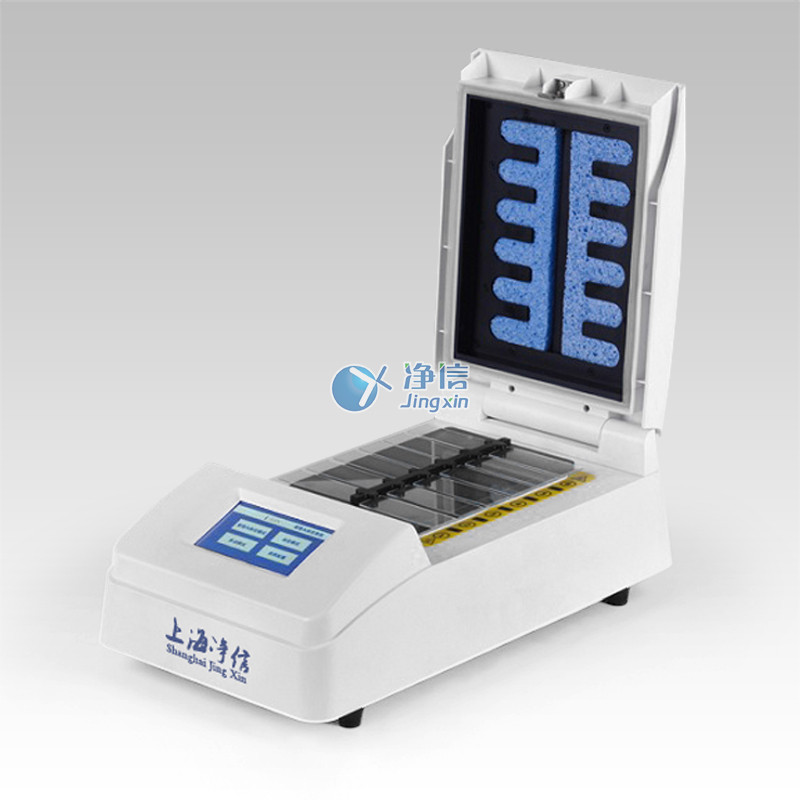

JXZJY-A in situ hybridization instrument uses micro-processing technology combined with PID control mode to achieve the denaturation and hybridization process of 12 slides. The sealed upper cover and humidifying parts ensure a more ideal hybridization environment. It integrates three operation modes of denaturation/hybridization, hybridization, and multi-step operation, which are suitable for various in situ hybridization experiments.
Features:
◆ Full touch screen operation, friendly interpersonal operation interface;
◆ Provide Chinese/English operation menu selection;
◆ It has a power-off recovery function. If there is a power-off situation during use, the device can automatically resume operation according to the original set procedure after the power is received;
◆ Support automatic cooling function after running;
◆ Support automatic preheating function;
◆ The platform has high temperature control accuracy and small temperature fluctuations;
◆ It can support 105 custom program storage functions;
◆ It can process 12 slides at the same time;
◆ It integrates three operation modes: denaturation/hybridization, hybridization, and multi-step operation.
Technical parameter:
The main parameters | Parameter range |
Temperature control range | Room temperature +5℃~100℃ |
Temperature control accuracy | ≤±1℃ |
Temperature uniformity | ≤±1℃ |
Sample size | 12片 |
input power | 350W |
Dimensions | 440X220X120mm |
time setting | 1min~99h59min |
Temperature setting range | 0℃~100℃ |
Heating time | ≤2 minutes (heating from 37°C to 95°C) |
Cooling time | ≤6 minutes (95℃ cooling down to 45℃) |
Fuse | 250V 3A Ф5X20 |
weight | 4.5kg |
